Explosion Proof - 14.458

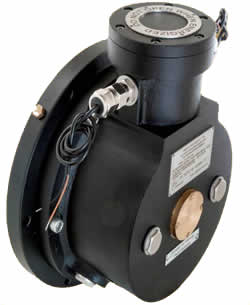

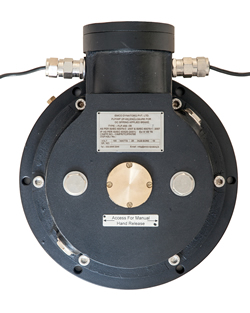

Flame Proof – Fail Safe Brake

Emco Flame proof – Fail safe Brakes have been specially designed for high toxic and hazardous environment in the industries where non flame proof equipments are not recommended for safety reasons. Our products have approval and certification by Central Mining Research Institute ( C.M.F.R.I. ) for Gas group – I and gas group – II–A and II–B for zone 1 & 2 areas, Suitable for T6 temperature zone. These brakes are electromagnetically actuated single disk with two friction surfaces. The braking power is applied by means of compression springs. The braking torque is generated in the power off state or in event of power failure condition.

Features

1	IP 66 protection
2	Fail safe
3	Torque up to 800 Nm & Manual release available on request
4	Non asbestos friction linings
5	Twin friction surfaces
6	Low inertia rotors
7	Class ‘F’ coil insulation
8	Hard chrome plated armature plates and flanges
9	German low-wear non asbestos lining available on request
10	Screw type manual release
