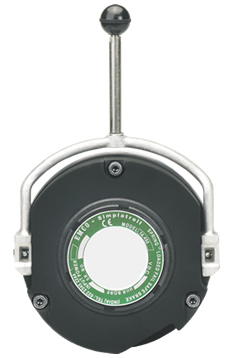

Spring Applied Brake - 14.488

The DC Spring Applied double coil brake unit designed to perform holding as well as emergency stopping functions (Normally On), making it particularly well-suited for brake motor applications. This brake can be used with EFF motor series.

This brake having two coils one is Booster coil & other is holding coil. The holding coil is designed with much lower wattage hence there is ¡°Power Saver¡± feature in this type (14.488 series) Brake which provides added advantage of very fast engagement of the brake also. Due to low power consumption the Brake heating is greatly reduced and hence these brakes can be used in higher ambient temperatures.

Features

1	Fail safe
2	Low Rotor Inertia
3	Torque in 4 to 5000 NM.
4	Manual Release
5	Non Asbestos friction linings+
6	German low-wear non asbestos lining available on request
7	Dust Protecting Seal
8	Compact Robust Unit
9	Simple Installation
10	Adjustable Brake Torque
11	Optimized Torque Steps
12	Simple Wear Adjustment
13	High Operating Frequency & Reliability Fast Switching Times
14	Salient Features Stationary Field (No Slip Rings)
15	Two Friction Surfaces Consistent Operating Characteristics
16	All Metal Parts Protected From Rust
17	Coil With Class 'F' Insulation No Restrictions On Mounting Positions
18	Residual -Free

Application

1	Brake motors
2	Cranes and Hoists
3	Servo motors
4	Machine tools
5	Packaging Machines
6	Golf carts
7	Presses
8	Printing machinery
9	Steel Plants
10	Industrial washing machines
11	Tyre making machinery
12	Hospital beds
13	Robotics
14	Tower cranes
15	Goods lifts
16	Construction machinery
17	Coil winding machinery
18	X- ray machines
19	Wheel chair
20	Wire drawing machinery
21	Battery operated electric vehicles
22	Textile machinery
